Product Feature

 The H7T14QP series are for speech microcontroller, less I/O count (only 16 I/Os), and provide 5 alanlog inputs for ADC.

The H7T14QP provides 3 of 8 bits PWM generators that can be used for charger application.

By featuring touch control, can be designed to touch inputs application.

There is a SPI interface for connecting to the external SPI-flash, it can store the recording data for speech recording application.

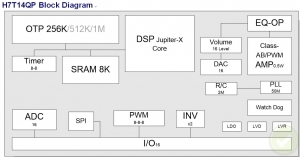

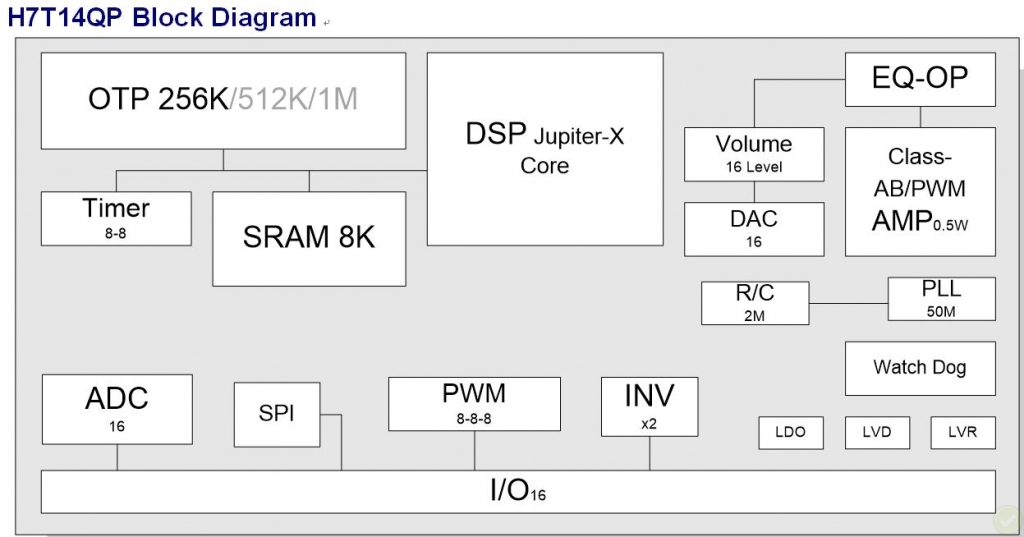

Product Description



n High-speed 8-bits DSP (Jupiter-X, 16-bit instruction set supported).

n DSP clock speed 48 MHz (Typical 40 MHz).

n H7T Series

-  H7T14QP – 256K bits (32K Bytes) OTP ROM.

n 8K bits (1K Bytes) SRAM.

n R/C oscillator base clock (2% accuracy) and for DPLL clock.

n 2 sets of 8-bits Timers (Timer-0/Timer-1)

n 3 sets of 8- bits PWM generators.

n 16 GPIOs, 12 of them are configurable for external GPIO interrupts.

n 4 analog inputs from I/Os and 1 isolative analog input (ANA_IN) for ADC.

n 1 16-bits ADC.

n 1 Low Voltage Detect (LVD / 2.5V)

n 1 Low-Voltage-Reset (LVR / 2.3V).

n 1 LDO for internal digital block (2.6V)

n 1 Watch-Dog Timer (WDT).

n 1 SPI Master/Slave serial bus.

n 1 11/12 bits PWM DAC.

n Built-in 1 AMP (with 16 levels gain control).

n Built-in 1 Class AB/D/PWM 8W Speaker Amplifier (Configurable Driving Size).

n Operating voltage: AMP PWM mode 2.4V~5.0V.

                                 AMP class-AB mode 2.4V~3.3V.

n Standby current <2uA (typical).
