Product Feature
The H9R56HP is a powerful DSP for voice signal processing. It can be used in voice recognition, voice compression algorithm. Its outputting sound quality is also great in consumer grade LSI.
In-system-programming and in-system-debug system is very easy to develop and manufacture.

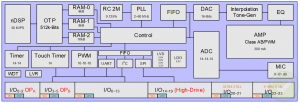

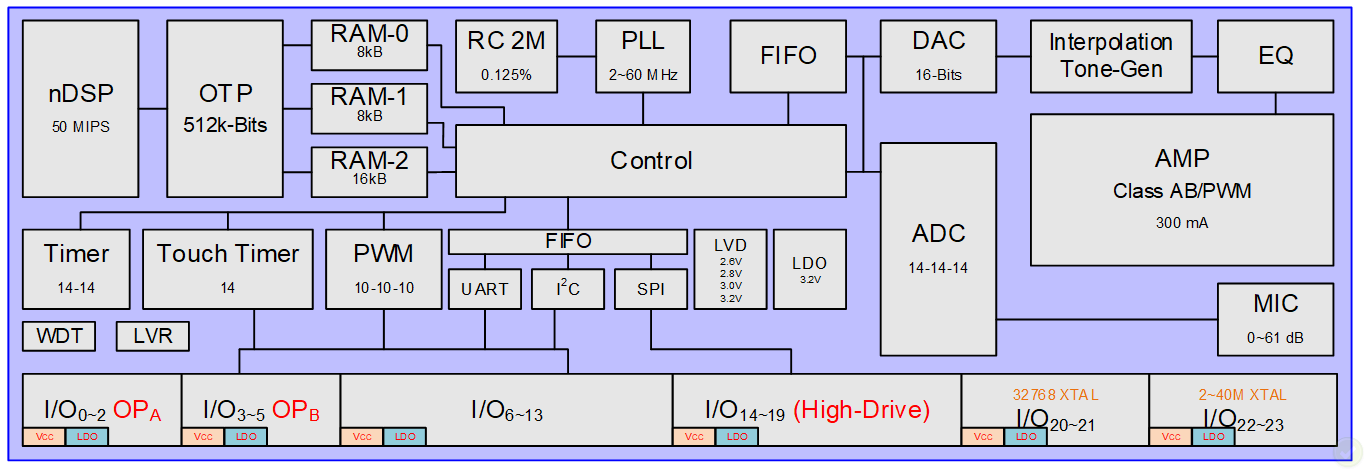

Product Description
n Built-in 16 bit nDSP processor.
n Built-in 40 bit MAC (saturation support).
n System clock speed: 50MHz,typical 32 MHz/32 MIPS.
n Built-in 512kbit(64k Bytes) Code memory(OTP).
n Built-in 256kbit(32K Bytes) Data memory(SRAM).
n Built-in R/C oscillator (0.1%) and PLL.
n Support external clock input: 2~40 MHz
n Built-in 3 set 14 bit Timer, timer 2 features IO capture.
n Built-in 3 set 8/10bit PWM I/O
n Built-in 1 set SPI/UART serial with FIFO.
n Built-in 1 set ADC/DAC Codec with FIFO
n Built-in 2 set operator amplifiers (OP-AMP).
n Built-in 1 tone generator with interpolation (good SNR).
n Built-in mathematic co-processor ∑{│[│(Xi ± Yi)│* Zi]│²}
n Built-in programmable gain amplifier 0~61dB for microphone
n Built-in 24 I/O with voltage option (LDO/Vcc), P00-P15 feature interrupt and wake-up function
n Built-in 2.6V/2.8V/3.0V/3.2V 100mA LDO for I/O and external components
n Built-in 1 low voltage detector (LVD), 4 levels (2.4V, 2.6V, 3.0V/3.7V, 3.2V/3.8V) option
n Built-in 1 low voltage reset (LVR), 4 levels (2.1V, 2.2V, 2.8V, 3.0V) option
n Built-in Watch-Dog Timer (WDT).
n Built-in SPI 1/2/4-bit Master/Slave interface
n Built-in I2C Master/Slave interface.
n Built-in 1set UART full-duplex interface.
n Built-in 1 set 16 bit ΔΣMulti-Level DAC.
n Built-in 1 set 10/11bit solution Class-D AMP.
n Built-in 1 set AMP 16-level analog volume control.
n Built-in 1 set Class AB/Class-D Speaker Amplifier
, With 4 levels driving current.
n Operating voltage:2.4V~5.5V.
n Standby(Sleep) current: 2uA
