Audio Codec Processor
Trade Description
Product Feature

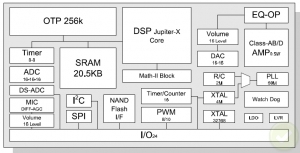

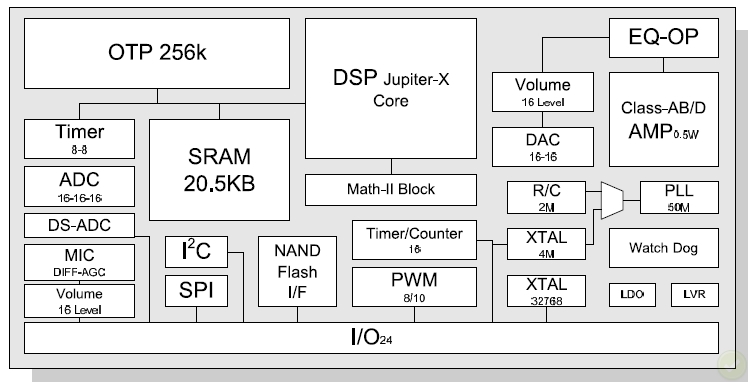

The H7A36QP is compatible with H244QP, and provides more powerful analog device and digital mathematic circuit. It features the microphone input and differential amplifier for high quality audio input and high resolution ADC for analog sampling.
The H7A36QP equips a math-processor (II) for processing the mathematical algorithms that can be implemented to a high-compressed speech encoder and decoder or the speech recognition …etc.
There are NAND interface and SPI bus for interfacing to the external storage, and 2-wire serial bus for linking with the other device or MCU.
For voice input, the H7A36QP also equips the differential amplifier for microphone input and AGC (auto gain control) for good SNR voice signal input.
Not only the good pre-amplifier is embedded but also the high-end delta-sigma DAC and class-AB speaker amplifier can drive and output the high-quality sound.
Product Description
Built-in enhance 16 bits DSP Core (Jupiter-X instruction set).
Internal operation frequency up to 48 MHz (Typical 40 MHz).
Compatible with H244QP.
Built-in 256K bits (32K bytes) OTP.
Built-in 20.5K bytes SRAM.
Built-in R/C trimming (1% Error) for base clock & digital variable frequency control PLL circuit.
Built-in VREF trimming for ADC.
Built-in 32768 XTAL oscillator circuit. This function is option with I/O pin.
Built-in 4M Hz XTAL oscillator circuit. This function is option with I/O pin.
External clock source (4M – 32M Hz) for operation.
Built-in 16 analog paths & internal VREF for 16 bits high resolution ADC input select.
Built-in 3 sets of 16 bits ADC converter for processing microphone array (ADC accuracy 12bit) .
Built-in 2 sets of 8-bit timer and 1 set of 16 bits timer, and the 16-bit timer can be programmed as Timer/Counter/Compare/Capture function with I/O pin.
Built-in microphone differential input pre-amplifier circuit, include AGC (Auto Gain Control) function.
Built-in microphone 16 levels gain control function.
Built-in 1 sets of 8/10 bits programmable PWM generator.
Built-in 16 bits Signed/Unsigned multiplier.
Built-in ∑{ [(Xi ± Yi) * Zi]² } high performance arithmetic block.
Built-in 24 independent I/O, and there are16 I/O containing interrupt function.
Built-in 4 high sink I/O (40mA).
Built-in low voltage reset function (LVR).
Built-in watch dog timer function (WDT).
Built-in NAND Flash interface.
Built-in SBus Master/Slave serial interface.
Built-in SPI Master/Slave serial interface.
Built-in two 16-bits high resolution DAC( + 5-Bits Multi-Level).
Built-in EQ-OP for mixer or filter purpose design.
Built-in class AB/D/PWM 8/0.5W circuit, direct drive speaker or buzzer device with 16 levels control.
Built-in Earphone/Speaker two type driving mode function.
Digital block operation voltage range in 2.4V-3.6V.
Analog block operation voltage range in 2.4V-4.5V.
Power down current 2uA.
