Product Feature

The built-in LCD driving interface is a programmable type design. All of COM & SEG can be combined up to 40 signals. COM can be programmable as 3/4/5/8 & SEG can be 32/35/36/37. Total can be combination as 32X8 256, 35X5 175, 36X4 144 & 37X3 111 dots. Otherwise SEG parts can be programmable as GPIO or external memory access interface (NAND/NOR Flash).
The built-in speaker driving circuit is a mix-mode Analog/Digital design. It can provide high quality analog class A/B type signal, or high transform effect class D type signal.
The system provide 2 PWM generator. The resolution can be programmable as 8/10 bits. The frequency also can be programmable by application. Corporate with 16 channels of 16 bits resolution ADC & programmable ADC converter rate. Using these features can be applied for DC power control (Charger or Regulator application), or special Frequency/Duty application like IrDA Transfer/Receiver.
The system built-in microphone differential input pre-amplifier with 16 level gain control & ALC. It can support high SNR of voice input, to reach high sensitive & low noise purpose.
This system can be applied to small display panel LCD application. The talking Clock/Watch/Calculator application can enhance with voice control (Recognition). High-Quality output Recording/Playback products, & long duration Voice-Memo with high compress rate of speech Encoder/Decoder. Even High-Level recognition products using Speaker-Dependent/Independent field, & within power management Hand-Held devices … and so on.

Product Description

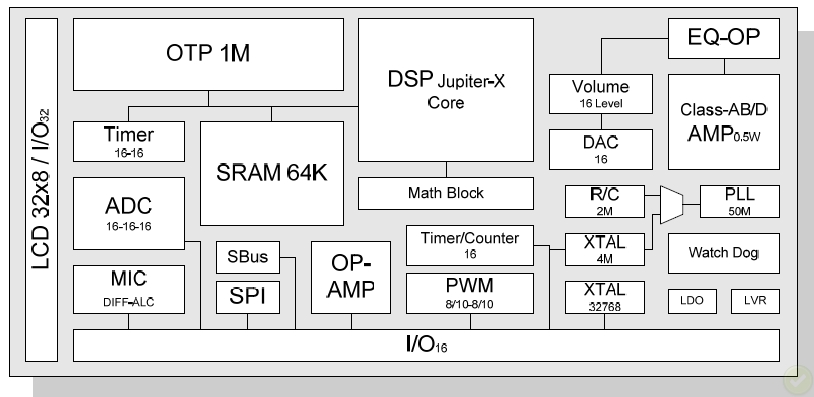

  • Built-in enhance 16 bits DSP Core (Jupiter-R instruction set).

• Internal operation frequency up to 66 MHz (Typical 48 MHz).
• Built-in 1M bits (128K Bytes) OTP.
• Built-in 64K bits (8K Bytes) SRAM.
• Built-in LCD programmable interface (Programmable dots 256/175/144/111, switch to I/O or MCU bus function).
• Built-in LCD programmable 2/4/8/16 gray level display.
• Built-in R/C trimming (2% Error) for base clock & digital variable frequency control PLL circuit.
• Built-in VREF trimming for ADC.
• Built-in 32768 XTAL oscillator circuit. This function shares with I/O pin.
• Built-in 4M Hz XTAL oscillator circuit. This function shares with I/O pin.
• External clock source (2M – 32M Hz) for operation.
• Built-in 16 analog paths & internal VREF for 16 bits high resolution ADC input select.
• Built-in 3 sets of 16 bits ADC converter for processing microphone array.
• Built-in 3 sets 16 bits timer, one of them can be programmable as Timer/Counter/Compare/Capture function with I/O pin.
• Built-in microphone differential input pre-amplifier circuit, include ALC (Auto Level Control) function.
• Built-in microphone 16 levels gain control function.
• Built-in 16 bits Signed/Unsigned multiplier.
• Built-in ∑{ [(Xi ± Yi) * Zi]² } high performance arithmetic block.
• Built-in 2 sets of 8/10 bits programmable PWM generator.
• Built-in 20 independent I/O, 16 I/O contain interrupt function.
• Built-in 32 programmable LCD I/O function.
• Built-in low voltage reset function (LVR).
• Built-in watch dog timer function (WDT).
• Built-in NAND/NOR Flash interface.
• Built-in SBus Master/Slave serial interface.
• Built-in SPI Master/Slave serial interface.
• Built-in 16 bits high resolution DAC.
• Built-in EQ function for mixer or filter purpose design.
• Built-in class AB/D/PWM 8/0.5W circuit, direct drive speaker or buzzer device with 16 levels control.
• Built-in Earphone/Speaker two type driving mode function.
• Digital block operation voltage range in 2.4V-3.6V.
• Analog block operation voltage range in 2.4V-4.5V.
• Power down current 2uA.
